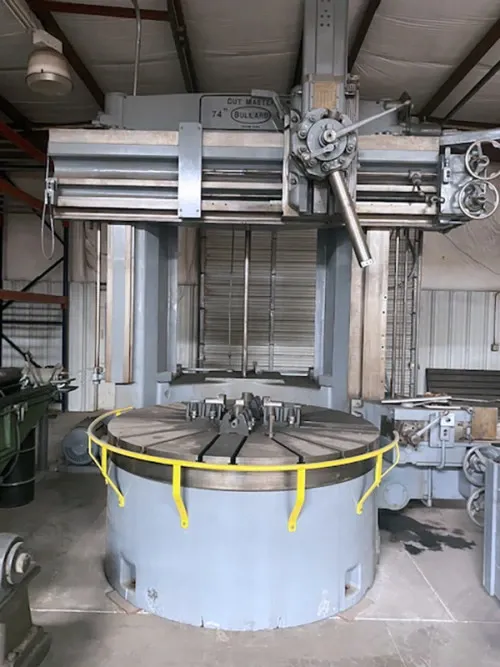

Bullard Cut-Master 1949

machine specifications

• Motor:

  40 HP Motor 3/60/220-440

• Side Head Horizontal Travel:

  27"

• Side Head Vertical Travel:

  34"

• Max Distance Table to Underside of Side Head Slide:

  20"

• Turret Head Tool Post Holes:

  2 3/4"

• Turret Head Vertical Travel:

  30 3/8"

• Max. Distance Table to Face of Turret:

  60"

• CROSS RAIL VERTICAL TRAVEL:

  48"

• Max. Distance Table to Rail:

  60"

• Max. Swing Side Head Above Table Top:

  78"

• Approx. Shipping Height:

  146"

• Approximate Dimensions:

  176" W x 136" D

• Approximate Weight:

  70, 400 lbs

• In Geometric Ratio:

  003 IPR to .50 IPR

• Feeds .:

  16

• 4-Change Gears:

  2.45 RPM - 90 RPM

• Speeds:

  20

• Max. Swing Side Head Below Table Top:

  82"
